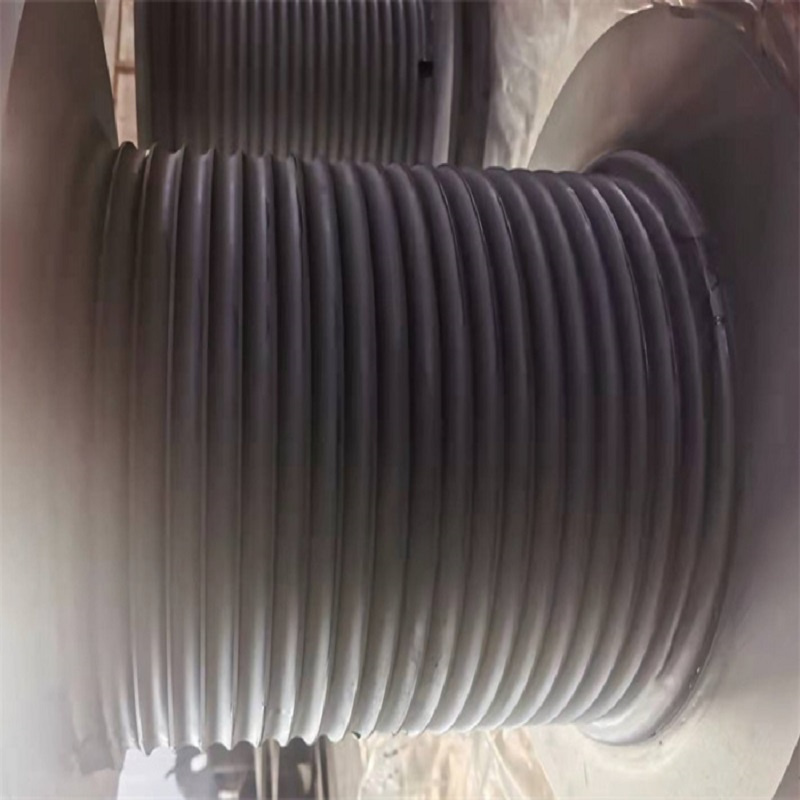

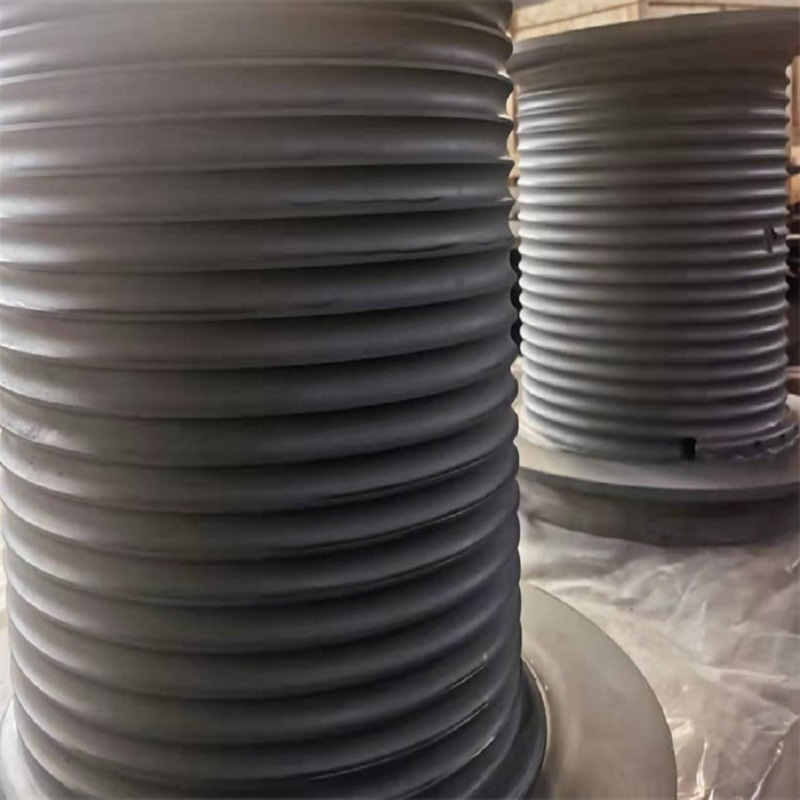

LEBUS rope groove is suitable for multi-layer winding winding hoist drum, the use of wire rope winding more than one layer, in order to reduce the rope in the upper layer winding (over rope) bite rope, squeeze rope and other adverse situations of wire rope, in order to achieve a safe and stable over rope transition, prolong the service life of equipment and wire rope.
| No: | Wire diameter(mm): | Rotation direction | Main drum
diameter(mm) |
Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch,
Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch,
Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Mining winch
Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch,
drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch,
Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane,
Marine crane,Mooring winch |

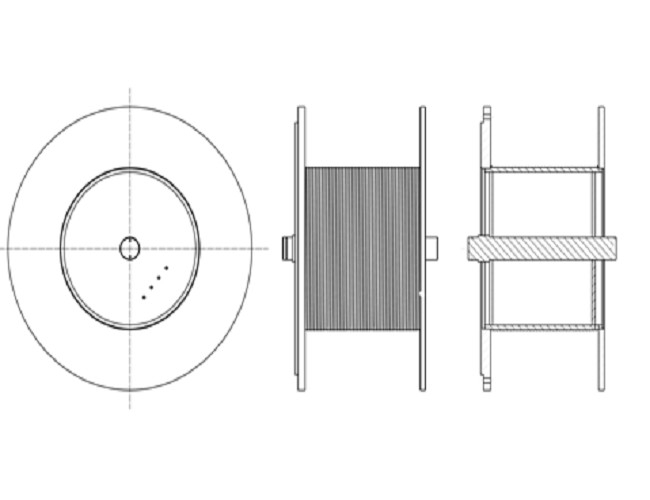

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

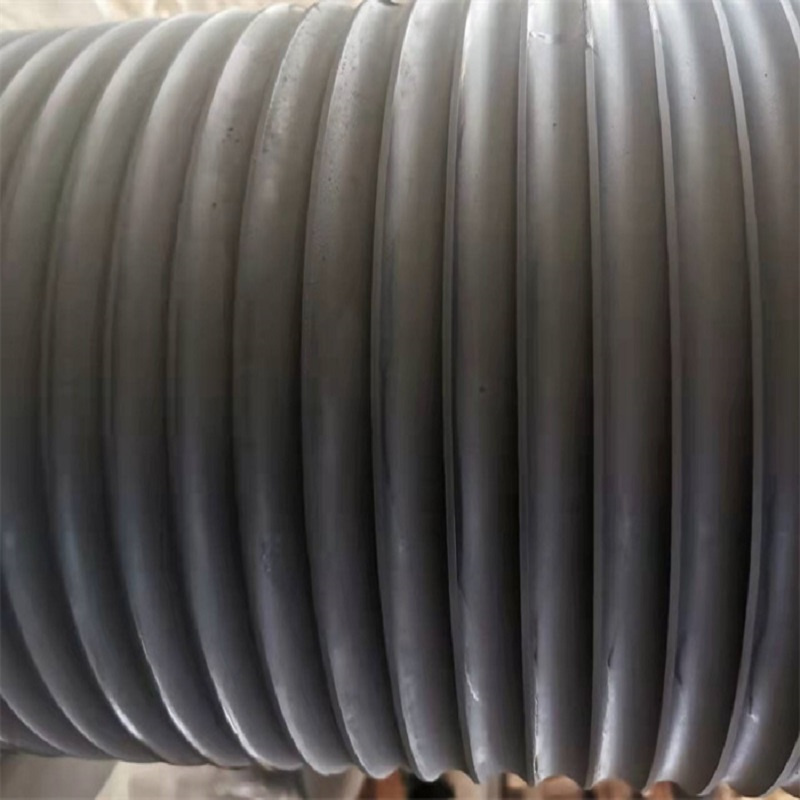

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
Professional engineer team and sales team
We have a professional team of engineers and sales teams, most of which have more than 10 jobs to experience
Imported equipment
We have the world's advanced production equipment
Fast lead time
Small and medium orders can be delivered within 20 days, large orders 30-35 days
One-stop service
We provide production operations and assembly services
High quality and factory price
We have ISO9001 international quality management system, as well as China production cost control experience, we can help you save 20%~30% of the production cost.
Good after-sales service
Our after-sales service can be up to three years, customers have more than 15 years of cooperation with us, and received consistent praise
