Winch, winding wire rope or chain with the drum to lift or pull heavy lifting equipment, also known as winch. Winch can be used alone, also can be used for lifting, road construction and mine lifting machinery components.

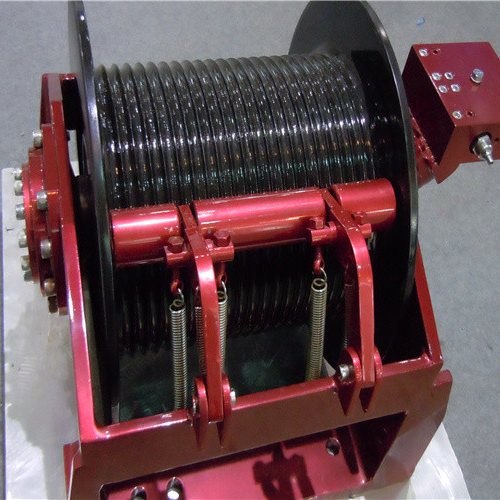

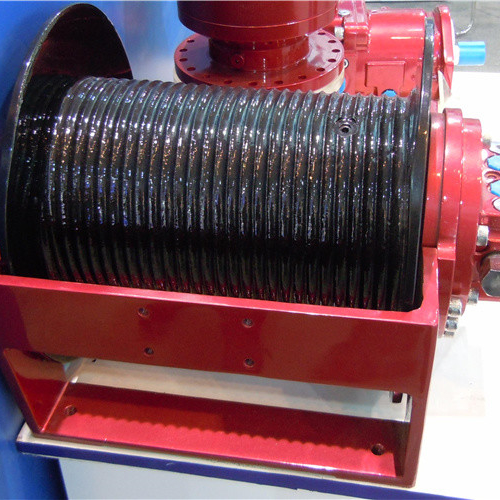

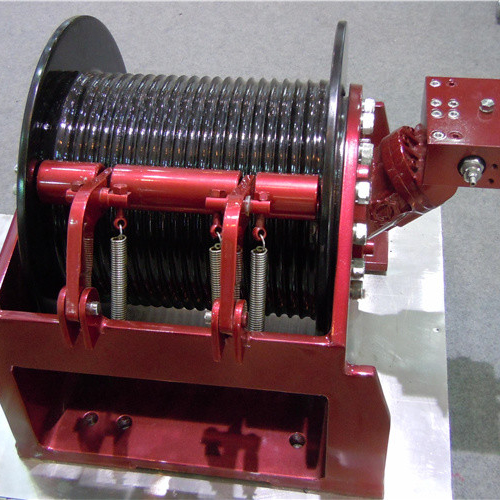

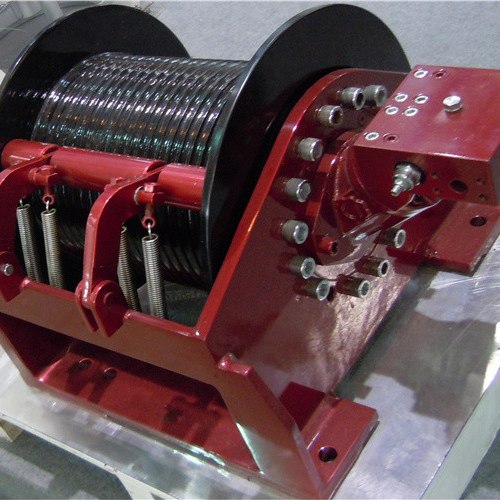

LBSW Hydraulic winch primarily consists of four parts, including oil distributor, hydraulic motor,brake,drum and stand. The oil distributor included one-way balance valve, brake and high pressure shuttle valve.
LBSW hydraulic winch has its own valve group, so that is makes hydraulic system more simple and increases stability of the transmission devices. The hydraulic winch valve group of winch solve the problem of empty hook vibrating and fall again during hoisting. So hydraulic winch can lift and put down stably.

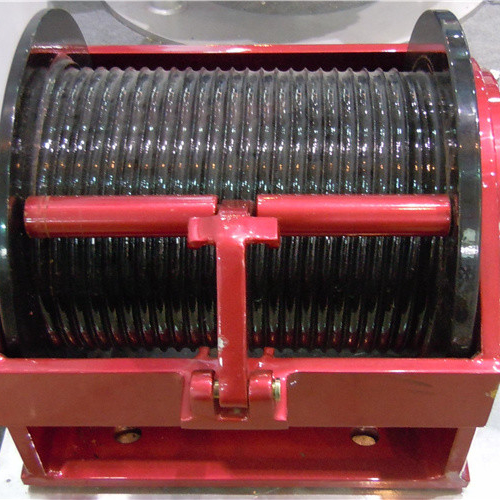

The winch drum can be used no groove, spiral groove and lebus grooves, It meets the requirements of single layer spooling and multi-layer spooling. LBSW hydraulic winch is high efficiency, low energy consumption, low noise and beautiful form.
| Product name | Hydraulic crane lebus winch |
| color | as customes |
| size | 100*80*60 |
| Pull | 10T |
| layer | 1-7 |
| Wire rope capacity | 12-300 |
| Hydraulic motor | As customes |
| Planetary reduction ratio | I=20.45 |
| L/min | As customes
|
|
Model |
Pull force (KN) |
Rope speed (m/min) |
Drum bottom Diameter (mm) |
Difference of working pressures (Mpa) |
Rope capacity (mm) |
Diameter of steel rope (mm) |
Model of hydraulic motor |
|
LBSW-DN10-10-00 |
10 |
0-40 |
250 |
13 |
100 |
10 |
C2.5-5.5 |
|
LBSW-DN12-18-00 |
12 |
0-40 |
250 |
12.5 |
100 |
12 |
C2.5-5.5 |
|
LBSW-DN14-20-00 |
20 |
0-35 |
300 |
12 |
100 |
14 |
C2.5-5.5 |
|
LBSW-DN15-30-00 |
30 |
0-30 |
350 |
14 |
100 |
15 |
C3-5.5 |
|
LBSW-DN22-65-00 |
65 |
0-35 |
550 |
15 |
200 |
22 |
C5-5 |
|
LBSW-DN24-80-00 |
80 |
0-30 |
600 |
16 |
200 |
24 |
C5-5.5 |
|
LBSW-DN30-120-00 |
120 |
0-30 |
750 |
16 |
200 |
30 |
C7-5.5 |
|
LBSW-DN38-180-00 |
180 |
0-30 |
860 |
16 |
200 |
38 |
C7-5.5
|
Asia / Australasia /Central / South America / Eastern Europe / North America / Western Europe
Q1.Are you a factory or a trading company?What can you provide?
We are a factory locates in industrial belt of Shijiazhuang City,our main products are hydraulic orbit motors,hydraulic winches, hydraulic brakes, hydraulic stee hole punchers, hydraulic steerings, etc.
Q2. I want to buy your product,how can I pay?
We support T/T,Paypal, Western Union,also you can pay through Alibaba trade assurance
Q3.How about the warranty?
We promise to supply high quality products and professional after-sales service.We can supply technical support as long as you need,beyond that, we also offer six months of warranty.
Q4.If we don't find what we want on your website, what should we do?
You can start a conversation to us or send us email about the descriptions and pictures of the products you need, We will check if we can supply.
Q5.Can we buy 1pc of each item for quality testing?
Yes, we understand quality test is important and we are glad to send 1pc for quality testing
-
