Inside the Multi-Layer Groove: What Good Winch Drum Design Really Looks Like

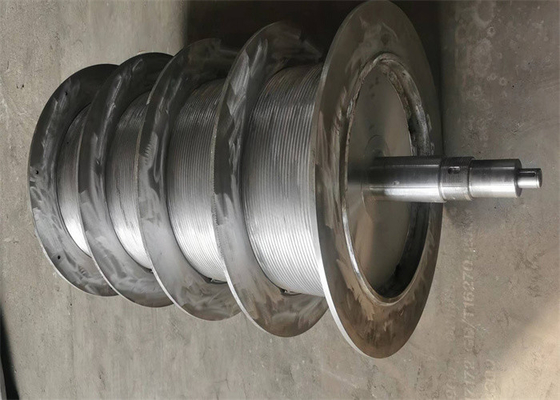

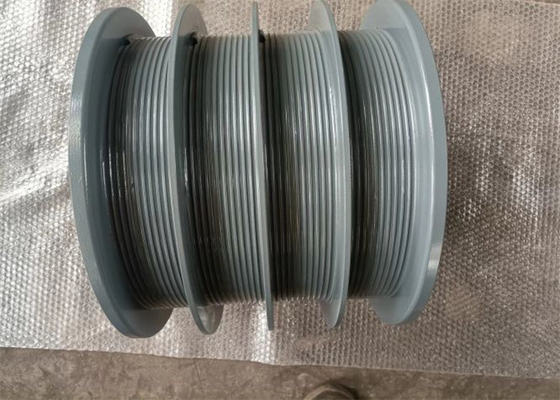

If you’ve ever watched a mooring line jump a groove in heavy swell, you know why winch drum design matters. The 4 Drum Winch Drum Mooring Winch Multi Layer Winding from LBS Winch has been popping up on offshore platforms and oil workover rigs I’ve visited lately. To be honest, I was skeptical of “quadruple Lebus” claims until I saw the lay straightness on layer five—surprisingly tidy.

Trends I’m Seeing

Multi-drum, multi-layer mooring sets are going compact, with smarter groove geometry and tougher coatings. Vendors push digital load monitoring, but—actually—the quiet revolution is in repeatable groove pitch, tighter tolerances (±2% is becoming baseline), and better metallurgy to resist wire rope fretting. On that front, LBS’s winch drum design leans hard into Lebus-style parallel grooves for even spooling and rope life gains.

Product Snapshot

Model	4 Drum Winch Drum Mooring Winch Multi Layer Winding
Groove Pattern	Lebus multi-layer (double-flanged), pitch tolerance ≈ ±2%
Rope Diameter Range	≈ 10–56 mm (real-world use may vary)
Line Pull (per drum)	≈ 50–300 kN depending on gearbox/hydraulics
Materials	Q345B / 42CrMo barrel; alloy-steel flanges; optional stainless sleeves
Surface	Hot-dip galvanizing + epoxy topcoat; C5-M optional
Cert Options	DNV/ABS class compliance, ISO 9001 QA

How It’s Built (and Tested)

Process flow I noted at their Shijiazhuang shop (NO.688 Zhongshan Road, Qiaoxi District, Hebei, China): material traceability → CNC rough-turning → groove milling (Lebus geometry) → stress relief → flange welding (AWS D1.1) → NDT (UT/MT) → balancing → coating → rope trial spooling. Their winch drum design includes fillet transitions to reduce stress risers at flange-to-shell joints. Test data: 125% proof-load on drum shell, 96-hour salt-spray on coated coupons, rope lay deviation under 2.5 mm up to layer 6 (shop trial, 22 mm rope).

Applications and Feedback

Seen in offshore platform cranes, oil workover/drilling, logging winches, façade/window washer systems, even helicopter motor winches. A North Sea operator told me, “rope crush dropped visibly; we stretched inspection intervals by a third.” Another shipyard client said the four-drum stack saved deck space—though, I guess, the hoses got crowded. Expected service life: 10–15 years with ISO 4309 rope care; rope life improvement vs plain drums: ≈ 15–35% depending on duty.

Vendor Snapshot and Pricing

LBS lists FOB price: US $0.5–9,999 / Piece; MOQ: 100 pieces; supply ability: 10,000 pieces/month. For custom groove sleeves or oversized barrels, lead times understandably shift.

Vendor	Groove Tech	Certs (typ.)	MOQ	Lead Time	Notes
LBS Winch	Lebus multi-layer	DNV/ABS, ISO 9001	100	≈ 4–10 weeks	Strong customization
Vendor B	Helical grooves	ABS	50	≈ 6–12 weeks	Lower cost, less rope life
Vendor C	Replaceable sleeves	DNV	1 (custom)	≈ 10–16 weeks	Premium pricing

Why This Geometry Wins

The winch drum design evens out contact pressure, reducing cross-layer cutting. With correct fleet angle (0.25–1.25°) and fairlead alignment, I’ve seen crush marks all but disappear. Pair with ISO 4309 inspection routines and you protect both rope and drum shell.

Standards and Compliance

Typical compliance tracks DNV-ST-E273 for offshore winches, API Spec 7K for drilling service, ABS Lifting Appliances, plus ISO 4309 for rope care. The winch drum design choices here make passing those audits a lot less dramatic.
