Polymer grooved drums are quietly redefining winch reliability

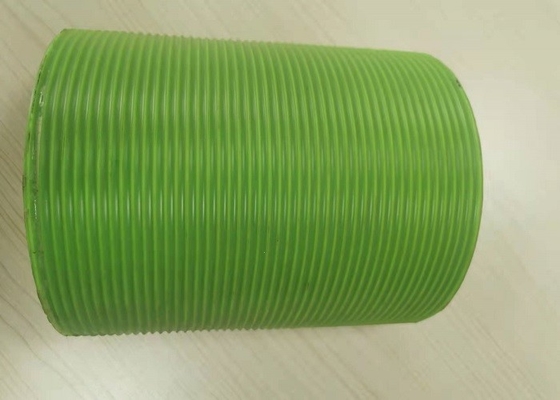

If you’ve wrestled with wire rope crossovers or that dreaded “bird’s nest” on a steel drum, you’ll appreciate what the Polymer Materials Anchor Drum Winch Cover Winch Drum Manufacture brings to the deck. It’s a practical evolution: LBS grooving geometry in either an integrated drum or a split sleeve that slips over your existing drum, with surprisingly robust polymer materials that play nice with wire rope, synthetic rope, and the maintenance team.

What’s trending in winch drums (and why polymer matters)

Migration from steel-only drums to hybrid or polymer sleeves for lower rope wear and lighter retrofits.
Split LBS sleeves to extend the life of legacy drums—swap the sleeve, not the whole drum. Cost-saving, obviously.
Multi-layer LEBUS grooving for stable winding with higher line pulls and fewer crossovers.

Technical snapshot and options

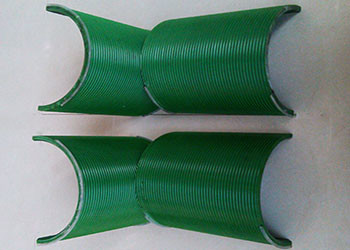

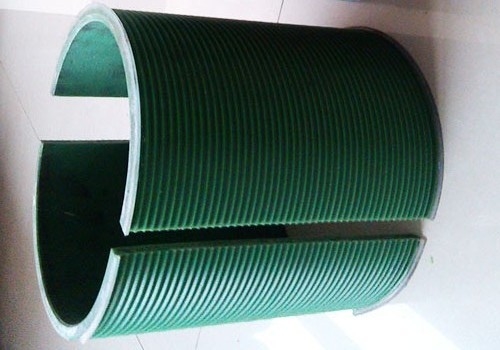

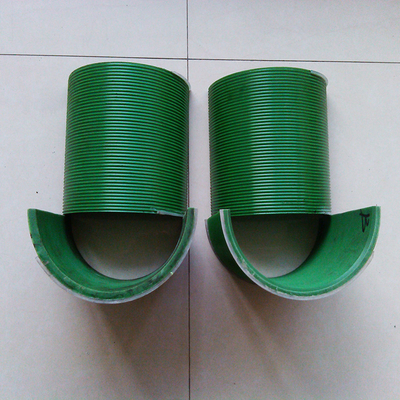

Two formats: Split LBS rope-groove sleeve (fast retrofit) and integrated LBS grooved drum (new-build or full replacement). Many customers say the split sleeve pays for itself the first time you change rope type.

Parameter	Spec (≈/typical)
Groove type	LEBUS multi-layer, alternating inclined + parallel grooves
Materials	PA6/PA12 nylon, UHMW-PE, polyurethane blends
Rope range	Ø 6–72 mm (custom up to ≈90 mm)
Hardness	Shore D 60–78 (ASTM D2240)
Operating temp	-30 to +80 °C (short excursions +100 °C)
Friction vs. rope	Reduced μ vs. steel; smoother spooling, less strand fretting
Mounting	Split sleeve bolt-on or interference fit; integrated drum with/without flanges
MOQ / Capacity	Min. 100 pcs; ≈10,000 pcs/month
FOB price	US $0.5–9,999 / piece (depends on size/spec)

Process flow and quality

Material selection: PA6/PA12 or UHMW-PE chosen by load, temperature, and rope type.
Groove machining: CNC-cut LEBUS pattern matched to rope diameter and D/d ratio.
Assembly: Split sleeve alignment pins + bolting; integrated drum welding or flange as required.
Testing: Hardness (ASTM D2240), tensile (ASTM D638), salt-spray on metal interfaces (ISO 9227), trial spooling under load.

In our in-house rig, a 22 mm wire rope cycled 10,000 wraps at 60% MBL showed ≈35% less outer-strand polish versus steel drum control, and zero groove chipping. Real-world use may vary, of course.

Where it’s used

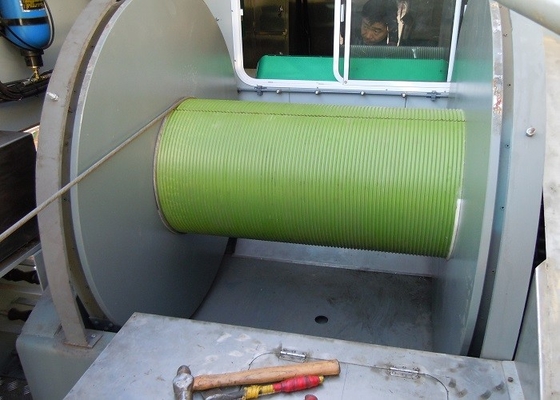

Offshore cranes and A-frames, workboats and anchor handlers, mining hoists, logging winches, tower cranes, mobile cranes, and utility tensioners. To be honest, the retrofit angle is huge—maintenance windows are short, budgets shorter.

Advantages at a glance

Protects rope: softer interface reduces strand fretting and corrosion points.
Stable multi-layer spooling with LEBUS geometry—fewer crossovers.
Fast refurbishment: replace the sleeve, not the drum.
Weight savings vs. all-steel, helpful on boom tips and high masts.

Vendor comparison (field-notes style)

Vendor	Lead Time	Customization	Certs/Docs	After-Sales
LBS Winch (Hebei)	≈3–6 weeks	High: groove match to rope, split/integrated	ISO traceability, PPAP-like packs on request	Remote install guidance
Local Fabricator	1–4 weeks	Medium; may lack LEBUS expertise	Basic CoC	On-call, varies
Import Catalog Vendor	4–10 weeks	Low–Medium	General datasheets	Limited

Real-world cases, quick hits

Offshore tug: swapped to Polymer Materials Anchor Drum Winch Cover Winch Drum Manufacture split sleeve, 26 mm wire rope. Reported ≈40% reduction in outer-wire flattening after 8 months; no re-grooving downtime.
Logging yarder: integrated drum with LEBUS pattern for 20 mm rope. Faster line recovery and fewer mid-shift respools; operators… actually happier.

Compliance and notes

Designed to support rope handling per ISO 4309 inspection regimes and crane-class guidance (DNV/ABS/API). Factory at NO.688 Zhongshan Road, Qiaoxi district, Shijiazhuang, Hebei, China. Certificates and material traceability available upon request. Polymer Materials Anchor Drum Winch Cover Winch Drum Manufacture isn’t a magic wand—but it’s a smart, field-proven upgrade.

Customization tips

Match groove pitch and flank angle to rope lay and diameter.
Check D/d ratio and number of layers; share load cases and drum torque.
Pick polymer by temperature and chemical exposure; add stainless inserts for harsh saltwater hubs.

Customer voice

“Installed over a weekend, back on charter Monday.” Another buyer told me they were “surprised how quiet the drum got—less chatter on payout.” Small things, big difference.
