Products Description
Overview of gears
A gear is a mechanical component with teeth that mesh with each other. Widely used in mechanical transmission and the entire mechanical field. Modern gear technology has reached: gear module 0.004~100mm; The gear diameter ranges from 1 millimeter to 150 meters; The transmission power can reach 100000 kilowatts; The rotational speed can reach hundreds of thousands of RPM; The maximum circumferential speed is 300 meters/second.

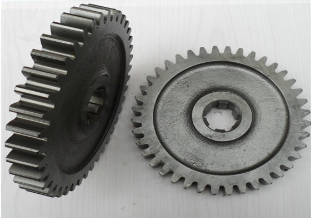

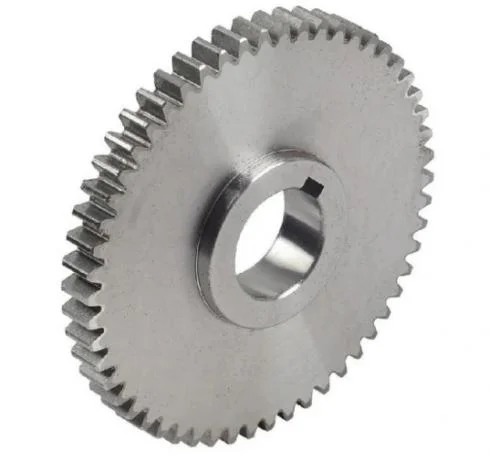

What is a spur gear
Straight teeth are a classification method for gears, known as Spur Gear. According to the relative position and tooth direction of a pair of gear axes (whether the two circles are parallel), it can be divided into planar gear rotation and spatial gear rotation; According to the different working conditions of gears, they can be divided into open transmission and closed transmission; According to the shape of gear teeth or tooth profiles, they are divided into straight teeth, helical teeth, herringbone teeth, or straight teeth, curved teeth.

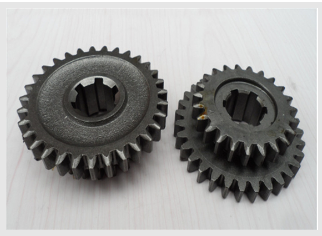

Application of spur gears
Straight gears are mainly used to reduce speed and increase torque. In some consumer goods products, they are also used for high-speed transportation. The following are the applications of spur gears in several products: mixers, washing machines, cars, bicycles, mechanical clocks, etc Advantages of spur gears: simple design, easy manufacturing, low cost, high efficiency, and the ability to achieve various transmission ratios Disadvantage of spur gears: high noise

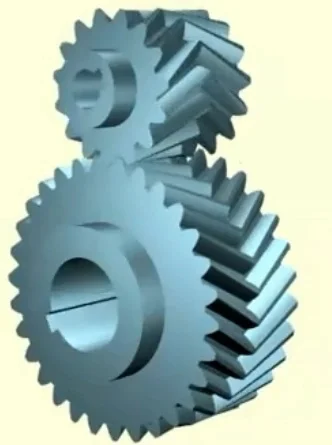

What is a helical gear
Helical gears are not entirely helical gears. It should be said that helical gears are the meshing mode of two helical gears, distinguished by their different directions of transmitting force in space. Ordinary spur gears engage simultaneously along the tooth width, resulting in impact vibration noise and unstable transmission.
Application of helical gears
Helical gears are used to transmit heavy loads between parallel shafts at very high speeds. The following are the applications of helical gears in various products: automotive gearboxes, printing and other machinery, conveyors and elevators, factory automation, etc Advantages of helical gears: Compared with spur gears, they have higher load-bearing capacity and contact ratio, smoother, quieter, and better accuracy level Disadvantages of helical gears: Compared to spur gears, they have lower efficiency and increase the axial thrust on the shaft due to the helical angle

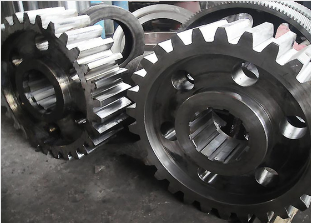

What is a herringbone gear
A helical gear has a lateral force on the shaft. To eliminate this force, a gear is made into a symmetrical and opposite helical gear to eliminate this force. It looks like a herringbone and is abbreviated as a double helical gear.
Application of Herringbone Gear
Used for high load-bearing capacity requirements, such as differentials and heavy machinery. Advantages of herringbone teeth: reduced axial force, smoother transmission and engagement, reduced noise, self centering ability, high load capacity Disadvantages of herringbone teeth: manufacturing difficulties and high costs
Development
In the future, gears are developing towards heavy-duty, high-speed, high-precision, and high-efficiency directions, striving for small size, light weight, long service life, and economic reliability. The development of gear theory and manufacturing technology will further study the tooth damage mechanism of gears, laying the foundation for establishing reliable strength calculation methods, and improving the bearing capacity of gears and extending their lifespan. In order to improve the smoothness of gear operation and increase the contact area of the gear at full load, the bearing capacity of the gear is improved by studying its elastic deformation, manufacturing and installation errors, and temperature field distribution.
Material
The commonly used steels for manufacturing gears include quenched and tempered steel, quenched steel, carburized quenched steel, and nitrided steel. The strength of cast steel is slightly lower than that of forged steel, and it is commonly used for larger gears; Grey cast iron has poor mechanical properties and can be used in light load open gear transmissions; Ductile iron can partially replace steel in manufacturing gears; Plastic gears are mostly used in places with light loads and low noise requirements, and their paired gears are generally made of steel gears with good thermal conductivity.

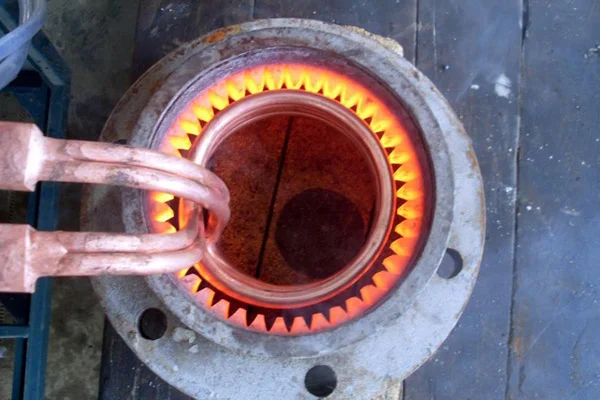

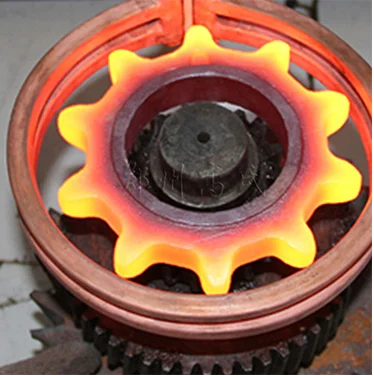

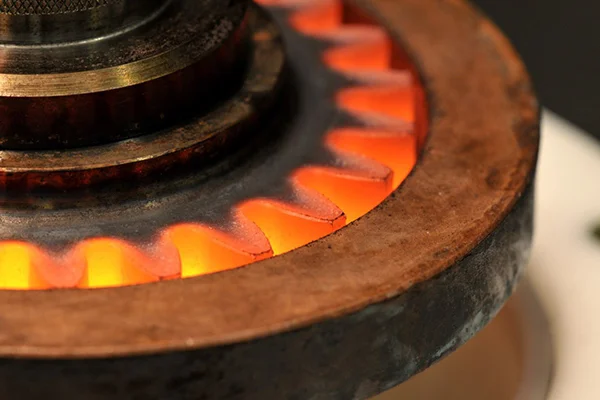

Quench
Advantages
In recent years, our products have been widely used in the fields of offshore platform cranes, oil workover drilling winches, logging rope winding equipment, wall wiping machine winches, helicopter motor winches, and so on. With its high reputation, high-quality products and service system, it has received widespread praise from domestic and foreign customers.
Support and Services
Products Technical Support and Service
We understand how important it is for our customers to have reliable technical support and service for their products. We are here to provide the best possible assistance when it comes to any questions or issues you may have. Our experienced team of experts is available to help you find the best solution for your needs. We offer a variety of technical support options, ranging from troubleshooting and installation to product advice and maintenance. Our technical support team is available 24 hours a day, 7 days a week to answer any questions you may have. In addition to our technical support services, we also provide a wide range of services to keep your products running efficiently and effectively. These services include regular maintenance, repair, and replacement. We can also provide assistance with customization and upgrades if necessary. We strive to provide the best possible technical support and service for our customers. We are committed to keeping your products running smoothly and efficiently. If you have any questions or issues, please do not hesitate to contact us. Our team of experts is here to help.
Packing and Shipping
1.Each product is packed in a strong wooden boxes. 2.The box is labelled with the product details, such as the model number, and other relevant information. 3.We use reliable shipping providers to ensure that our products reach their destination safely and on time.
